Engineered for C&I
Energy Storage Excellence
Two integrated product platforms designed to address the full spectrum of commercial and industrial energy storage challenges.

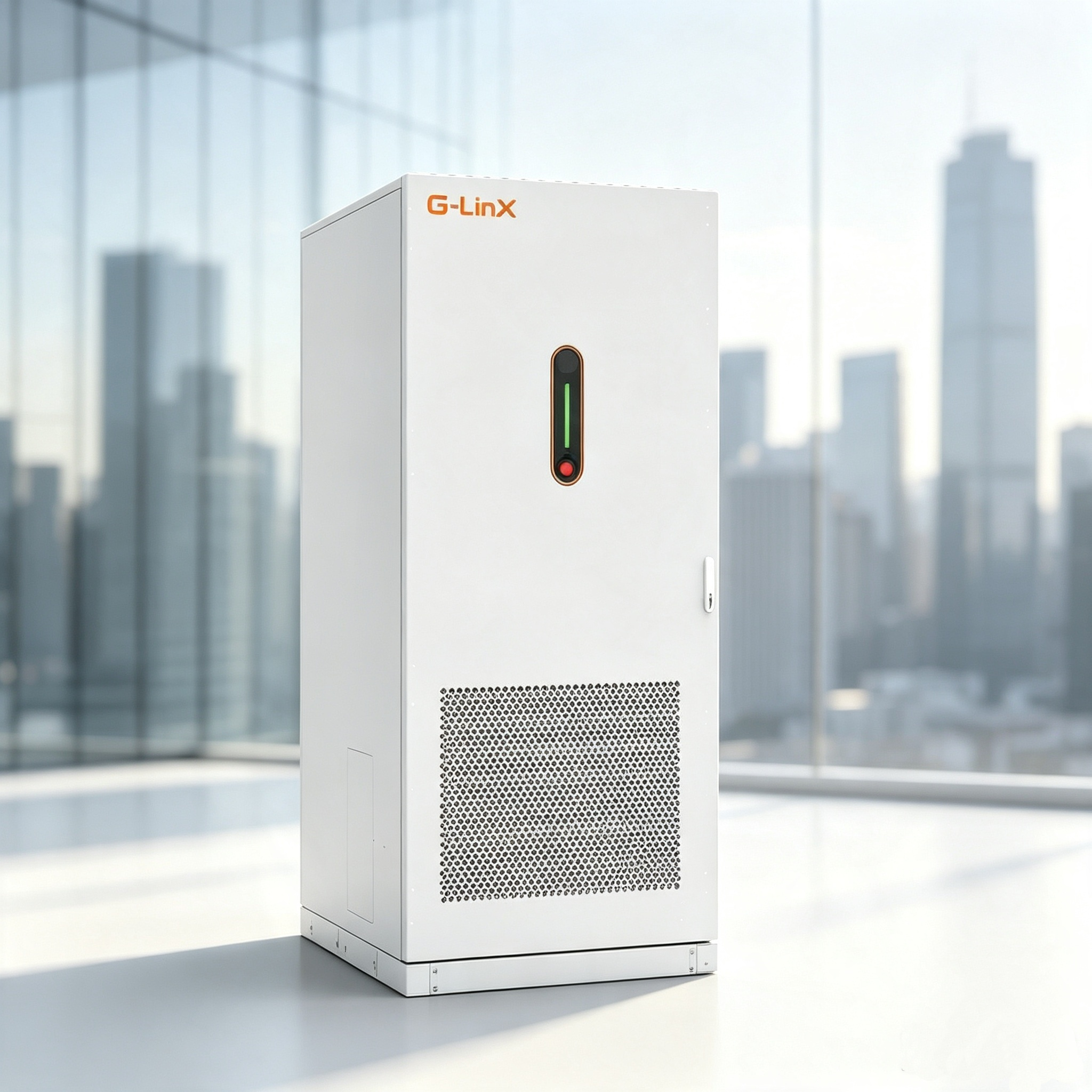

GX PowerCube 261 kWh
Intelligent, all-in-one AC-coupled energy storage for commercial and industrial applications. Retrofit-ready — integrate seamlessly with existing PV systems or stand alone as grid-side storage.
GX Hybrid PowerCube 261 kWh
An all-in-one hybrid solution that seamlessly integrates solar and storage in a single cabinet. Maximize self-consumption, minimize grid dependency, and simplify your C&I energy infrastructure.
GX PowerCube 261 kWh
Intelligent, all-in-one AC-coupled energy storage for commercial and industrial applications. Retrofit-ready — integrate seamlessly with existing PV systems or stand alone as grid-side storage.
Why Choose GX PowerCube
261 kWh, One Cabinet — Space Solved
High energy density in a compact footprint, ideal for space-constrained C&I sites.
Quiet Enough for Any Commercial Site
Low noise operation suitable for office buildings, retail, and urban locations.
AC-Ready: Retrofits in Hours, Not Days
Simple AC-side integration with existing PV or grid infrastructure.
Where It Works
Technical Datasheet
| BATTERY | |
|---|---|
| Parameter | Value |
| Cell Chemistry | LFP |
| Cell Spec | 314Ah 3.2V |
| Pack Config | 52.5kWh/1P52S |
| System Config | 261kWh/1P260S |
| Battery Voltage Range | 600-920V |
| PCS | |
| Parameter | Value |
| Rated AC Output Power | 125kW |
| Max AC Apparent Power | 135kVA |
| Grid Voltage | 220/380V or 230/400V |
| Grid Frequency | 50/60Hz |
| Max Round-Trip Efficiency | ≥90% |
| SYSTEM | |
| Parameter | Value |
| Dimensions | 1000×1380×2376mm |
| Weight | <2.8t |
| IP Rating | IP55 |
| Operating Temp | -25°C~+60°C |
| Noise | ≤70dB |
| Thermal Management | Smart liquid cooling |
GX Hybrid PowerCube 261 kWh
An all-in-one hybrid solution that seamlessly integrates solar and storage in a single cabinet. Maximize self-consumption, minimize grid dependency, and simplify your C&I energy infrastructure.
Why Choose GX Hybrid
0 Heavy Lifting — Save 3+ Hours of On-Site Inverter Mounting
Fully built-in inverter, shipped as a complete single cabinet, eliminating on-site 150KG external mounting and crane rental costs.
15-Min Commissioning, 30-Min Deployment — Fully Plug and Play
Internal power and communication lines pre-wired at factory. Only PV and AC grid connection steps on site, with one-tap App optimization.
Single-Vendor Support — Zero Multi-Brand Finger-Pointing
Single-source warranty from cells to PCS/EMS, eliminating multi-vendor after-sales blame-shifting and reducing long-term O&M pressure for installers.
Where It Works
Technical Datasheet
| BATTERY | |
|---|---|
| Parameter | Value |
| Cell Chemistry | LFP |
| Cell Spec | 314Ah 3.2V |
| Pack Config | 52.5kWh/1P52S |
| System Config | 261kWh/1P260S |
| Battery Voltage Range | 600-920V |
| PCS | |
| Parameter | Value |
| Rated AC Output Power | 125kW |
| Max AC Apparent Power | 135kVA |
| Rated AC Current | 189.4A@380V / 181.2A@400V |
| Grid Voltage | 220/380V or 230/400V |
| Grid Frequency | 50/60Hz |
| Power Factor | 0.8 leading~0.8 lagging |
| THDi | <3% |
| DC Injection | <0.5% |
| Max Round-Trip Efficiency | ≥90% |
| PV INPUT | |
| Parameter | Value |
| No. of MPPT | 10 |
| Strings per MPPT | 2 (total 20) |
| Max PV Input Power | 200kW |
| Max PV Connected Power | 250kW |
| Max PV Input Voltage | 1100V |
| PV Start Voltage | 180V |
| MPPT Voltage Range | 150-850V |
| Max String Current | 42A |
| PV Over-matching | Up to 200% |
| SYSTEM | |
| Parameter | Value |
| Dimensions | 1000×1380×2376mm |
| Weight | <2.8t |
| IP Rating | IP55 |
| Operating Temp | -25°C~+60°C |
| Humidity | 0-95% |
| Max Altitude | 4000m |
| Noise | ≤70dB |
| Corrosion | C3/C5 |
| Thermal Management | Smart liquid cooling |
| OPERATION MODES | |
| Parameter | Value |
| Grid-tied | ✓ |
| Off-grid | ✓ |
| AC Coupling | ✓ |
| Generator input | ✓ (optional) |
| COMMS | |
| Parameter | Value |
| Protocols | Modbus TCP/RTU |
| Interfaces | RS485 + Ethernet + CAN |
| SAFETY | |
| Parameter | Value |
| Smoke detector | ✓ |
| Optical alarm | ✓ |
| Aerosol suppression | ✓ |
| CERTIFICATIONS | |
| Parameter | Value |
| Safety | EN 62477-1 |
| EMC | EN 61000-6-2, EN 61000-6-4 |
| Transport | UN 38.3 |
